Úvod »Audio technika» Relacart UH-222D, ruční bezdrátový mikrofon
Relacart UH-222D, ruční bezdrátový mikrofon
doprava zdarma
není skladem

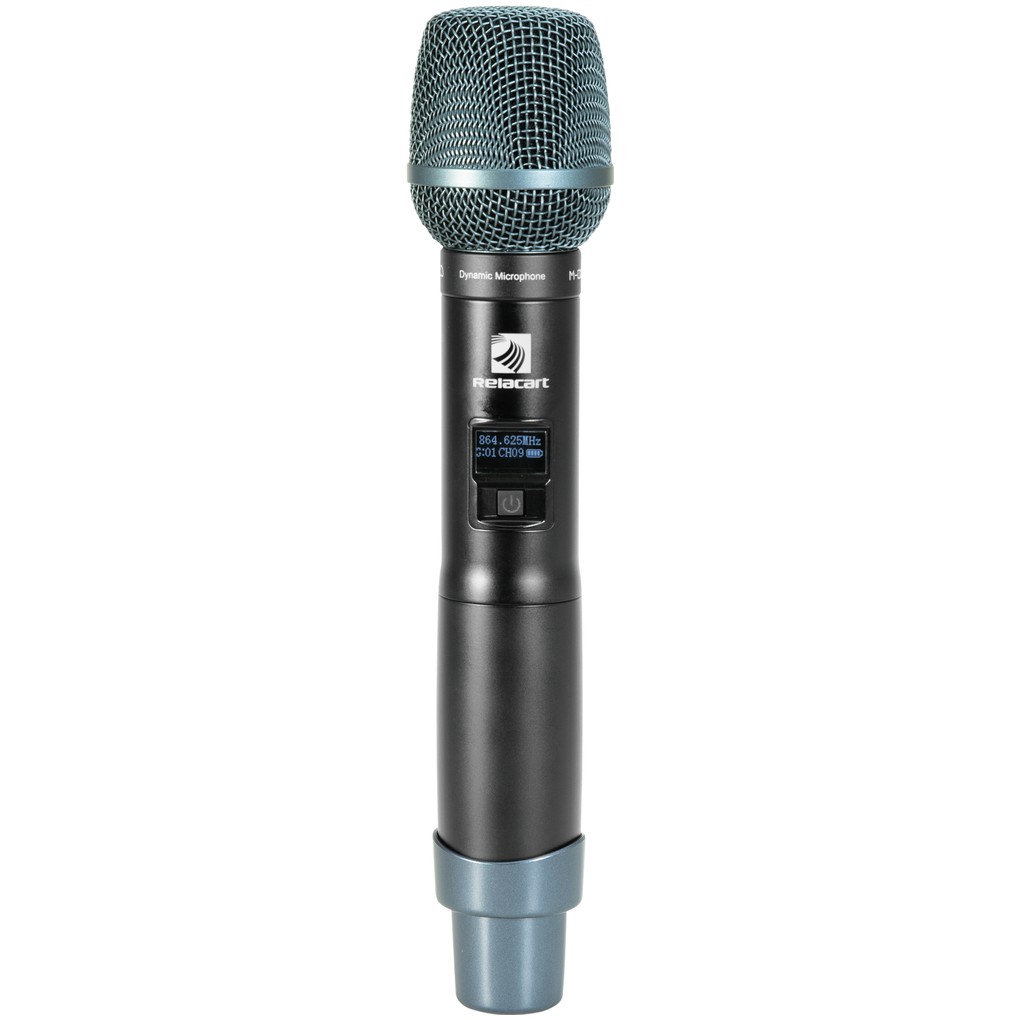

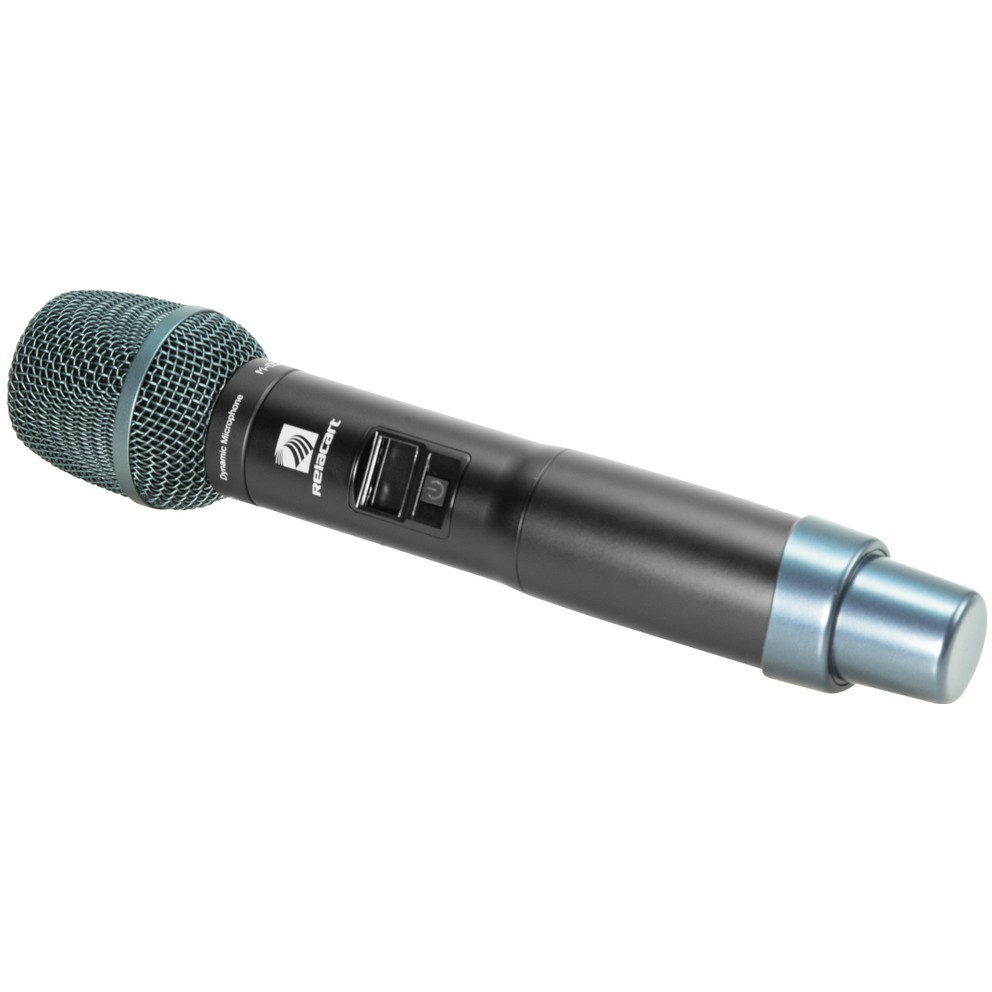

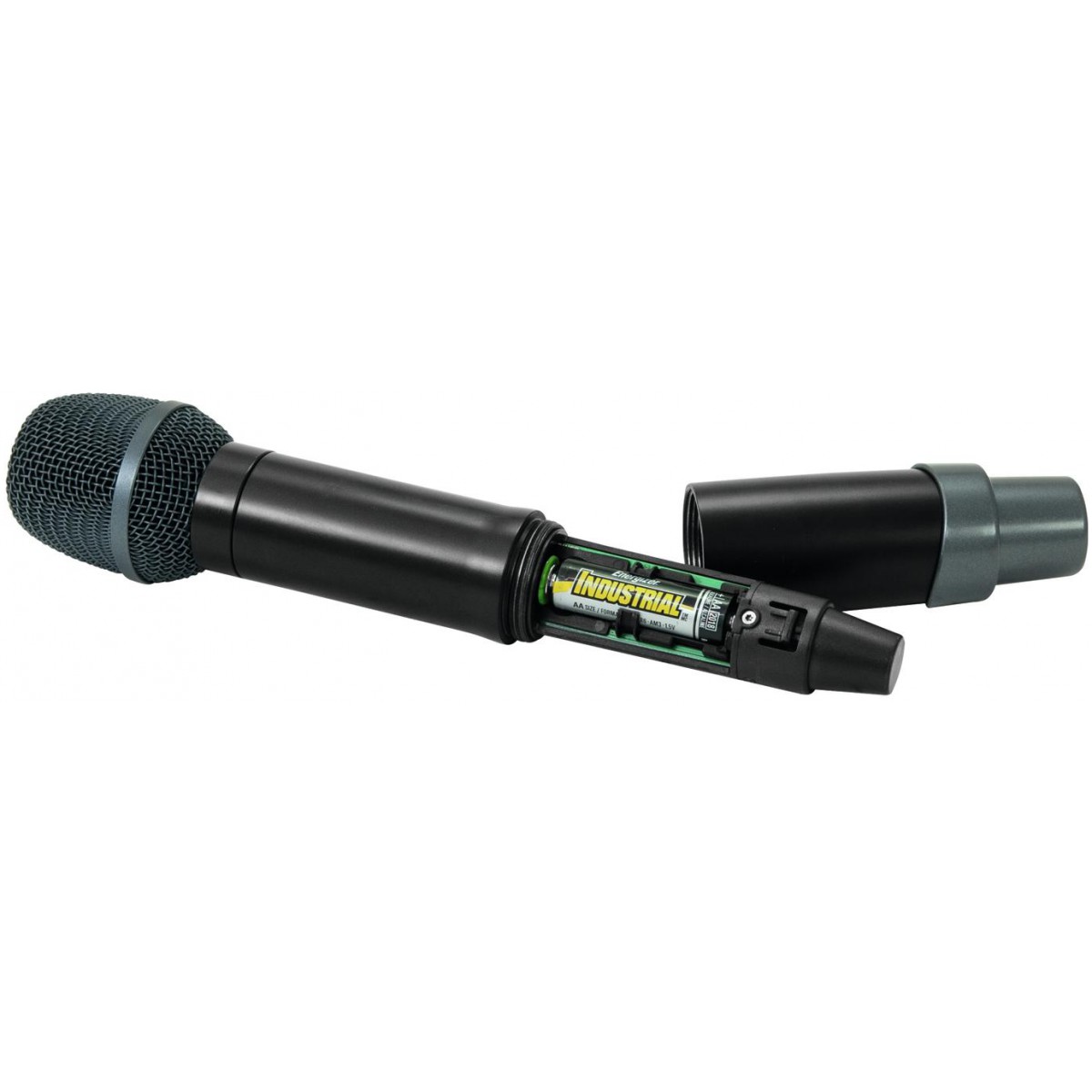

Dynamic hand-held microphone with UHF pilot tone technology (PLL). Ergonomic aluminum alloy housing, applicable for touring. Matches receiver UR-222S. 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz. 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth. Infrared interface for easy and error-free synchronization with the receiver via infrared signal. Operation range approx. 80 meters. OLED display for battery status and frequency. Mute function. RF output power Hi/Low adjustable. Directly compatible with Shures SM58 capsule. Operation via 2 x 1.5 V battery (type AA), not included. License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis).
Technické parametry
Technické parametry
| Type | Dynamic |
| Directivity pattern | Cardioid |
| Carrier frequency | UHF 823-832 MHz and 863-865 MHz |
| Transmitting frequencies | 90 |
| 10 frequency banks with up to 10 preset frequencies each | |
| Switching bandwidth | 11 MHz |
| Deviation | 45 kHz |
| Modulation | FM |
| Coverage | 80 m (with line-of-sight) |
| Power supply | 2 x 1.5 V battery (type AA) |
| Current consumption | approx. 120 mA |
| Battery life | approx. 8 hours |
| Dimensions | 52 x 255 mm |
| Weight | 235 g |
| Velikost balení | 29 x 11.5 x 7.5 cm |
| Hmotnost balení | 0.4 kg |
