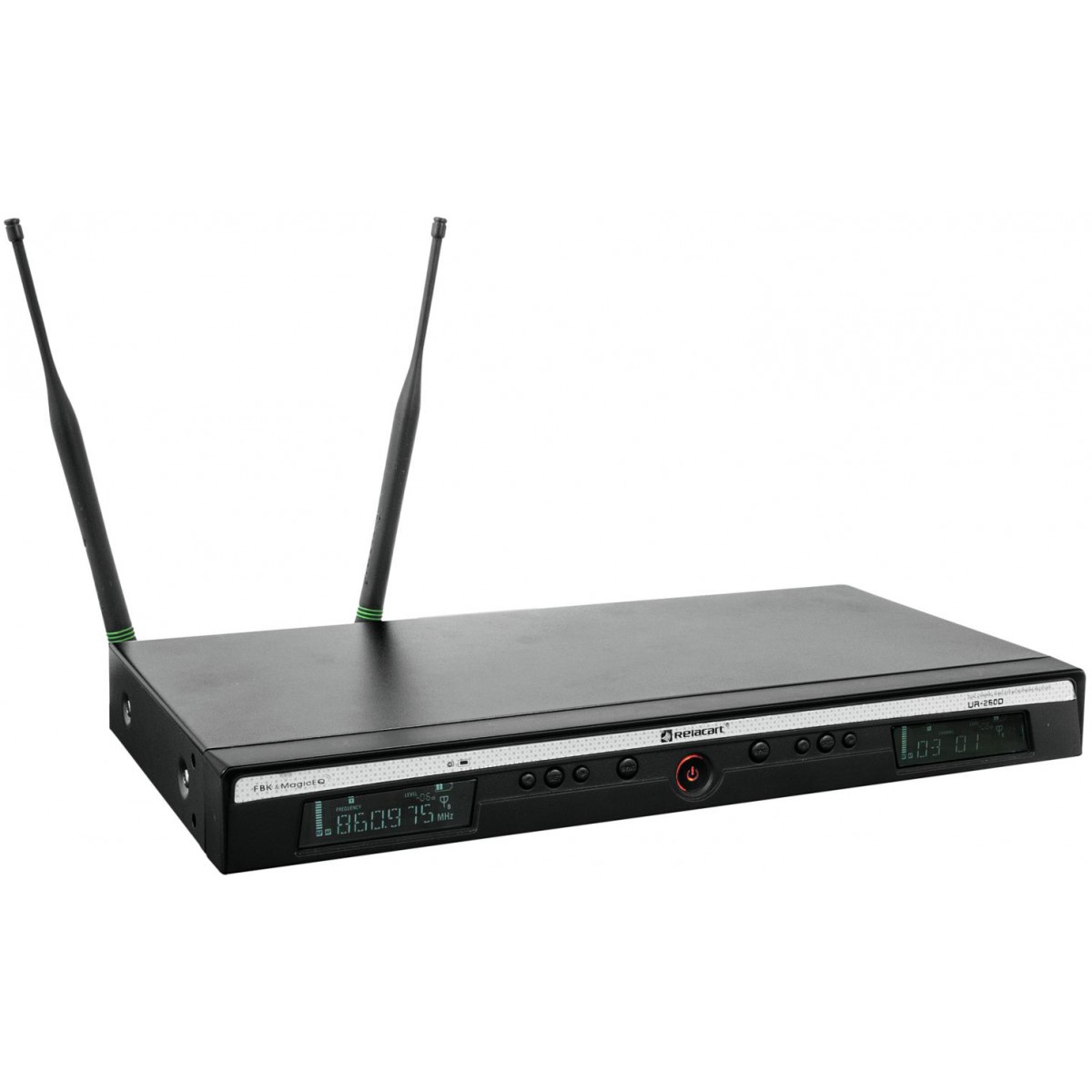

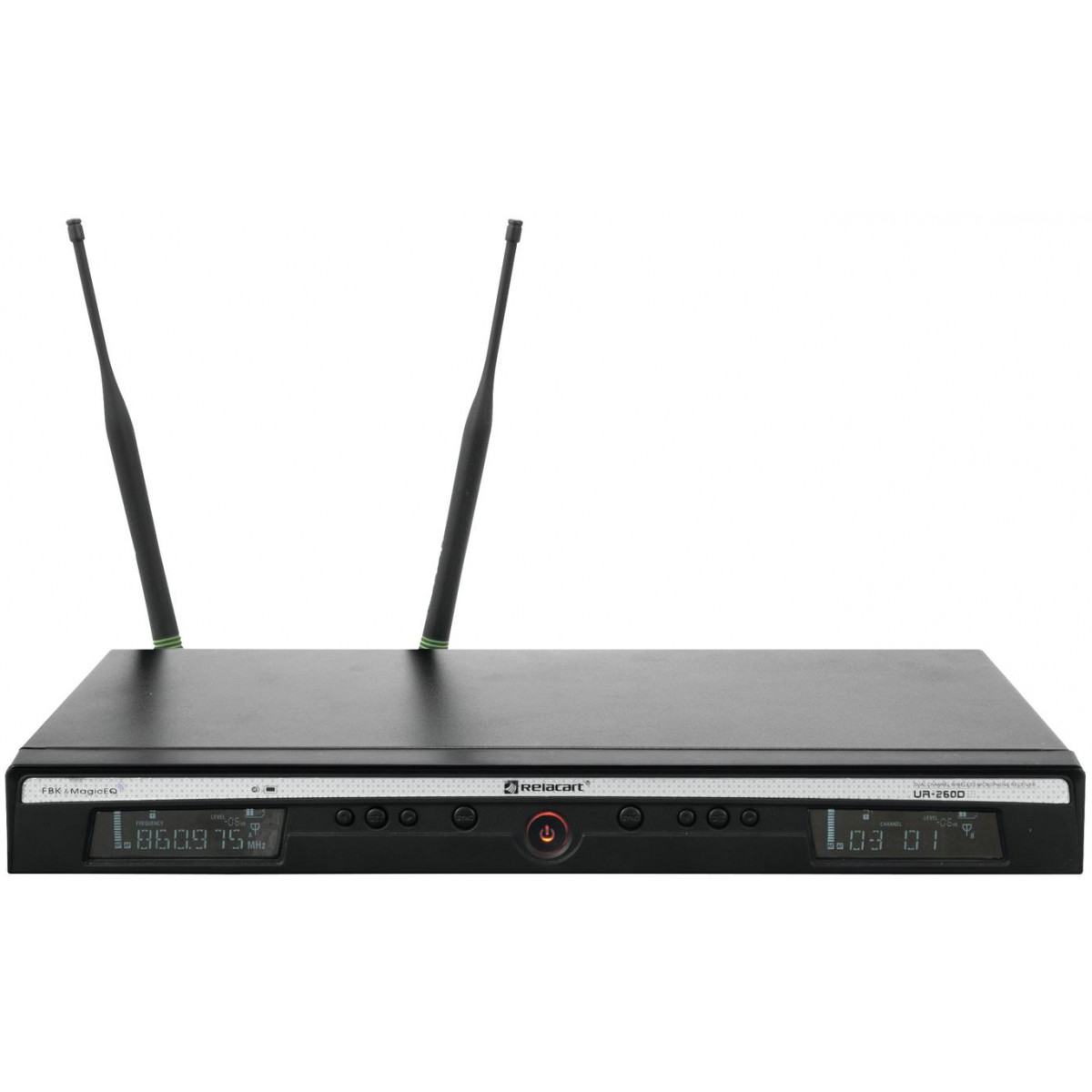

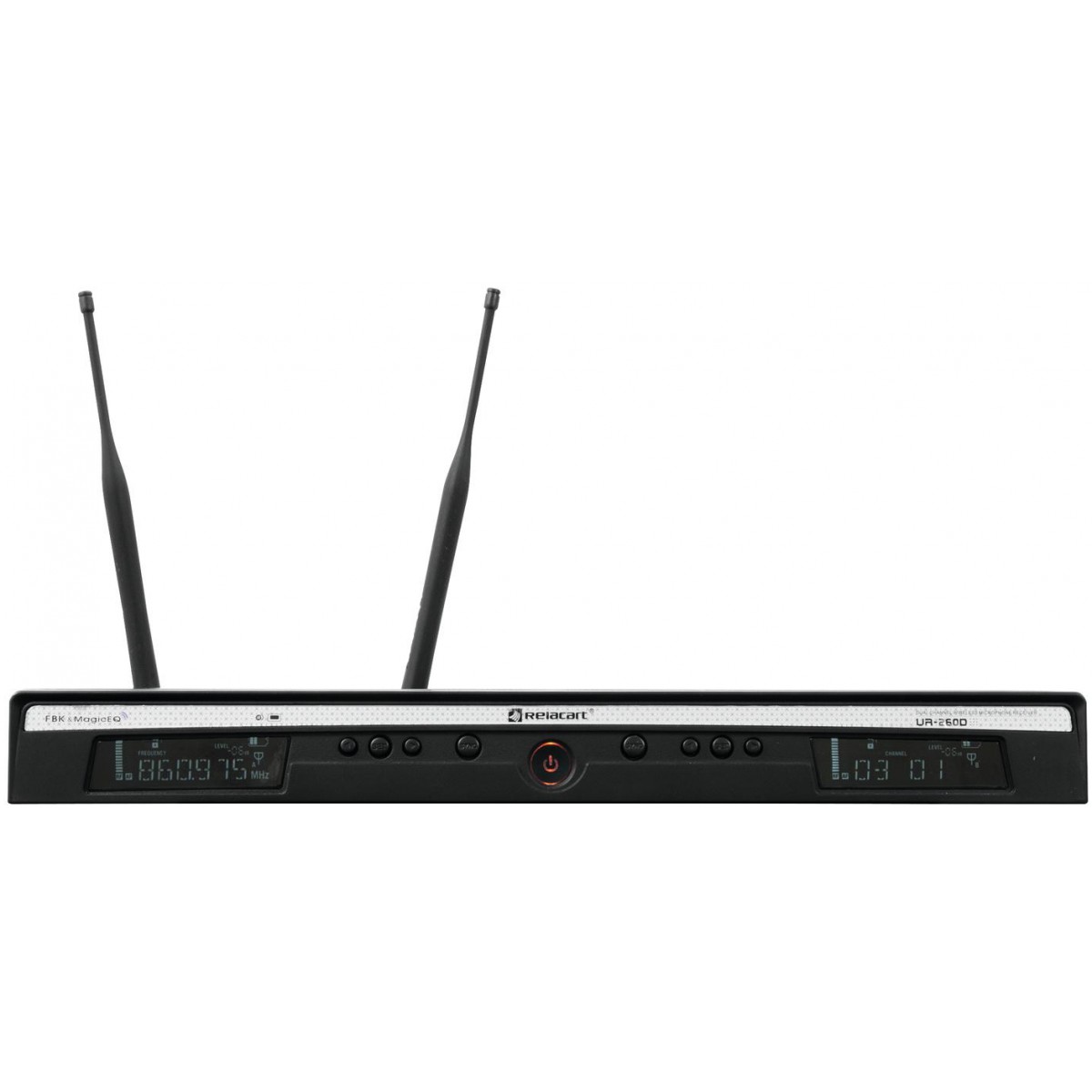

Relacart UR-260D, 2-kanálový UHF přijímač
doprava zdarma
skladem
2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality. Integrated MagicEQ enables amazing microphone modeling of hand-held microphones. Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets. Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone. DSP programming and management via Ethernet port and intuitively operated PC software. High-quality true diversity reception. 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz. 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth. Parallel operation of up to 9 systems is possible without any interference. Pilot tone technology (PLL) and noise squelch for interference-free operation. Operation range with line of sight approx. 80 meters. Automatic frequency scan (AFS) finds interface-free channels. Infrared interface for easy and error-free channel transfer to transmitters via infrared signal. LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency. Multiple units can be linked with network cables. Lock function avoids accidental changing of settings. XLR and 6.3 mm jack output. 2 detachable BNC antennas allow for use with the R-14D antenna divider. Matching hand-held microphone (UR-260D) optionally available. Delivery includes jack cable and power unit. Durable metal housing. 483 mm rack installation possible with supplied mounting brackets. License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis).
Technické parametry
Technické parametry
| System | True diversity, 2 channels |
| Carrier frequencies | UHF 823-832 MHz and 863-865 MHz |
| Receiving frequencies | 90 |
| 10 frequency banks with up to 10 preset frequencies each | |
| Switching bandwidth | 11 MHz |
| Deviation | 45 kHz |
| Frequency stability | 0.0005 % |
| T.H.D. | <0.5 % at 1 kHz |
| S/N ratio | >100 dB |
| Modulation method | FM |
| Coverage | 80 m (with line-of-sight) |
| Frequency range | 45-18000 Hz (3 dB) |
| Sensitivity | 5 dBV (S/N >60 dB at 25 deviation) |

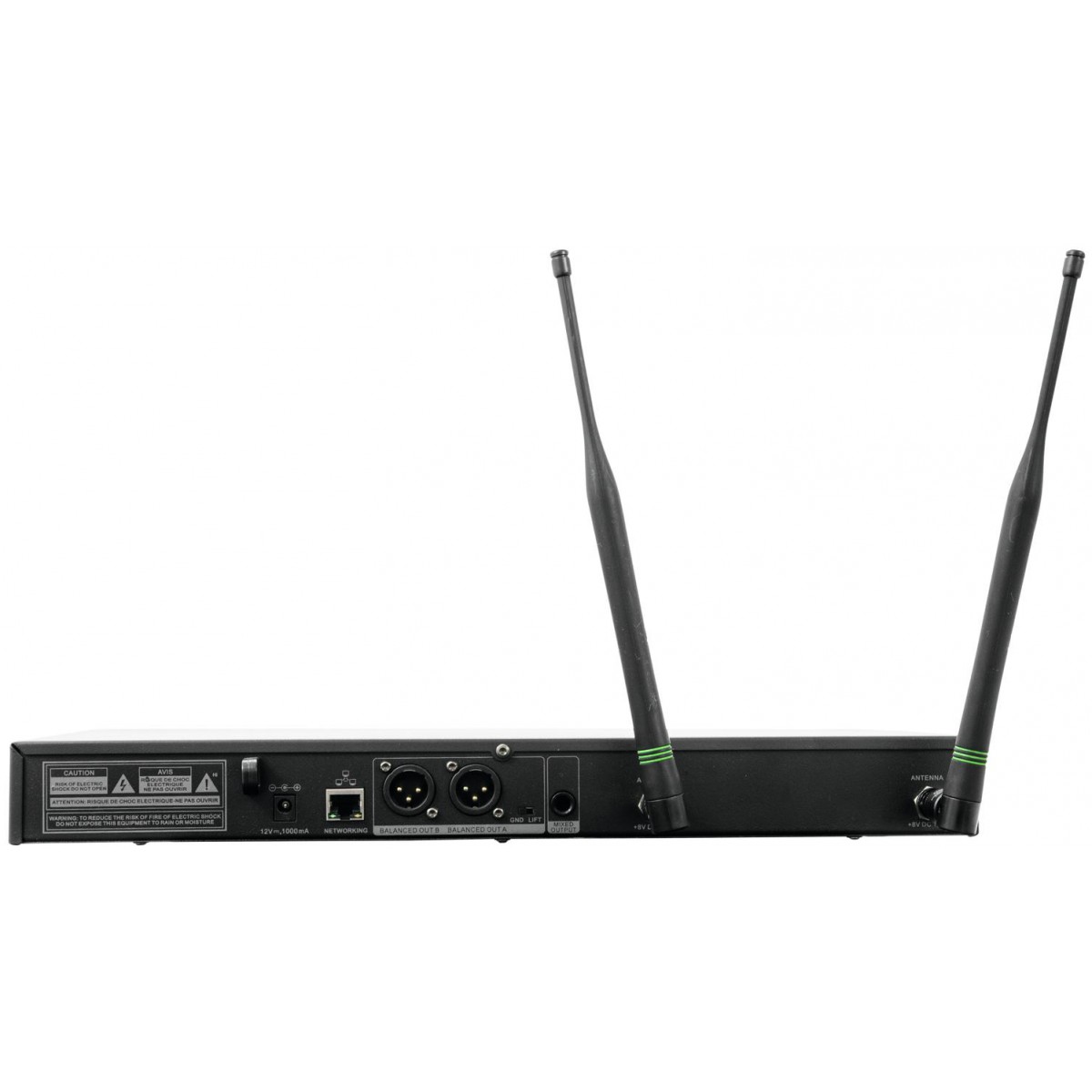

| Audio output | 2 x XLR, bal. |
| 6.3 mm jack, unbal. | |
| Antenna inputs | 2 x BNC (supply 8 V/150 mA) |
| Communication | LAN (TCP/IP) |
| for DSP programming via Ethernet | |
| Signal processor | 96 kHz, 24 bits |
| Power supply | 12 V DC, 1 A |
| via supplied power unit connected to 100-240 V AC, 50/60 Hz | |
| Power consumption | 12 W |
| Dimensions | 410 x 43 x 225 mm |
| Rack installation with 1 U | |
| with supplied mounting brackets | |
| Weight | 2 kg |
| Velikost balení | 60 x 43 x 8.5 cm |
| Hmotnost balení | 3.1 kg |
